概述
本文主要介绍在 JumpServer V2 (2.24版本左右) 和 V3 版本环境中，用户如何配置和替换自己的 SSL 证书，使用户能够通过 HTTPS 方式通过443端口正常访问 JumpServer。
替换证书
如果需要 Jumpserver 开启 HTTPS 服务，则需要将自己的证书上传至部署堡垒机的服务器上，上传位置为 /opt/jumpserver/config/nginx/cert（该目录为默认映射目录不可修改。使用该目录的前提是 JumpServer 的安装目录为 /opt/jumpserver）。
要完成证书的配置和替换，可以通过以下两种方式完成。
方式一
修改新上传的文件名称分别为 server.crt 以及 server.key.
将证书放到 /opt/jumpserver/config/nginx/cert 目录下。
[root@Test4LinuxRemoteApp cert]# pwd/opt/jumpserver/config/nginx/cert [root@Test4LinuxRemoteApp cert]# lsserver.crt server.key
修改配置文件前需要先关闭 JumpServer 服务
[+] Running 15/15 ✔ Container jms_core Removed 2.8s ✔ Container jms_redis Removed 5.2s ✔ Container jms_celery Removed 2.4s ✔ Container jms_web Removed 11.9s ✔ Container jms_video Removed 11.1s ✔ Container jms_kael Removed 11.3s ✔ Container jms_chen Removed 11.6s ✔ Container jms_lion Removed 11.5s ✔ Container jms_mysql Removed 9.4s ✔ Container jms_panda Removed 11.4s ✔ Container jms_magnus Removed 15.7s ✔ Container jms_koko Removed 14.4s ✔ Container jms_razor Removed 14.1s ✔ Container jms_xrdp Removed 13.7s ✔ Network jms_net Removed 0.9s [root@Test4LinuxRemoteApp jumpserver-offline-release-v3.10.6-amd64]#
修改 JumpServer 的配置文件（默认位于 /opt/jumpserver/config/config.txt）默认配置如下所示：
################################# HTTPS 配置 ################################## 参考 https://docs.jumpserver.org/zh/v3/installation/proxy/ 配置##HTTPS_PORT=443# SERVER_NAME=your_domain_name#SSL_CERTIFICATE=your_cert#SSL_CERTIFICATE_KEY=your_cert_key#
修改配置，使 JumpServer 开启 HTTPS 服务 修改如下所示：
################################# HTTPS 配置 ################################## 参考 https://docs.jumpserver.org/zh/v3/installation/proxy/ 配置#HTTPS_PORT=443SERVER_NAME=your_domain_nameSSL_CERTIFICATE=your_certSSL_CERTIFICATE_KEY=your_cert_key#
重新启动 JumpServer
[root@Test4LinuxRemoteApp jumpserver-offline-release-v3.10.6-amd64]# ./jmsctl.sh start[+] Running 14/15 ⠦ Network jms_net Created 5.6s ✔ Container jms_web Started 3.7s ✔ Container jms_razor Started 4.6s ✔ Container jms_koko Started 4.1s ✔ Container jms_celery Started 4.1s ✔ Container jms_redis Started 4.0s ✔ Container jms_xrdp Started 3.7s ✔ Container jms_magnus Started 5.0s ✔ Container jms_panda Started 3.7s ✔ Container jms_chen Started 4.1s ✔ Container jms_mysql Started 3.7s ✔ Container jms_lion Started 3.7s ✔ Container jms_core Started 4.1s ✔ Container jms_kael Started 3.7s ✔ Container jms_video Started
重启 JumpServer 并查看启动结果。
在V2.24 可以看到新增了一个容器 jms_lb
V3 则没有模块变化。
[root@Test4LinuxRemoteApp jumpserver-offline-release-v3.10.6-amd64]# docker ps -aCONTAINER ID IMAGE COMMAND CREATED STATUS PORTS NAMES b4ea5e06db37 registry.fit2cloud.com/jumpserver/chen:v3.10.6 "./entrypoint.sh" About a minute ago Up About a minute (unhealthy) 8082/tcp jms_chen b0bd39ba4565 jumpserver/redis:6.2 "docker-entrypoint.s…" About a minute ago Up About a minute (healthy) 6379/tcp jms_redis 14ba212c54d4 registry.fit2cloud.com/jumpserver/core-ee:v3.10.6 "./entrypoint.sh sta…" About a minute ago Up About a minute (unhealthy) 8080/tcp jms_core a3583e610b23 registry.fit2cloud.com/jumpserver/video-worker:v3.10.6 "./entrypoint.sh" About a minute ago Up About a minute (unhealthy) 9000/tcp jms_video 56129f6ba1c4 registry.fit2cloud.com/jumpserver/magnus:v3.10.6 "./entrypoint.sh" About a minute ago Up About a minute (unhealthy) 0.0.0.0:14330->14330/tcp, :::14330->14330/tcp, 0.0.0.0:30000-30002->30000-30002/tcp, :::30000-30002->30000-30002/tcp, 0.0.0.0:33061-33062->33061-33062/tcp, :::33061-33062->33061-33062/tcp, 0.0.0.0:54320->54320/tcp, :::54320->54320/tcp, 8088/tcp, 0.0.0.0:63790->63790/tcp, :::63790->63790/tcp jms_magnus b5fb7ad477b2 registry.fit2cloud.com/jumpserver/kael:v3.10.6 "./entrypoint.sh" About a minute ago Up About a minute (unhealthy) 8083/tcp jms_kael bddd9c66441f registry.fit2cloud.com/jumpserver/koko:v3.10.6 "./entrypoint.sh" About a minute ago Up About a minute (unhealthy) 0.0.0.0:2222->2222/tcp, :::2222->2222/tcp, 5000/tcp jms_koko 48ca1f2b5a7f registry.fit2cloud.com/jumpserver/xrdp:v3.10.6 "./entrypoint.sh" About a minute ago Up About a minute (unhealthy) 0.0.0.0:3390->3390/tcp, :::3390->3390/tcp jms_xrdp 3cf88384957f registry.fit2cloud.com/jumpserver/panda:v3.10.6 "./entrypoint.sh" About a minute ago Up About a minute (unhealthy) 9001/tcp jms_panda 2debb7ba6553 registry.fit2cloud.com/jumpserver/razor:v3.10.6 "./entrypoint.sh" About a minute ago Up About a minute (unhealthy) 0.0.0.0:3389->3389/tcp, :::3389->3389/tcp jms_razor f06a6f0e8ad7 registry.fit2cloud.com/jumpserver/lion:v3.10.6 "./entrypoint.sh" About a minute ago Up About a minute (unhealthy) 4822/tcp, 8081/tcp jms_lion c39ac3f047e8 jumpserver/mariadb:10.6 "docker-entrypoint.s…" About a minute ago Up About a minute (healthy) 3306/tcp jms_mysql 1c649811179a registry.fit2cloud.com/jumpserver/web:v3.10.6 "/docker-entrypoint.…" About a minute ago Up About a minute (unhealthy) 0.0.0.0:80->80/tcp, :::80->80/tcp jms_web 6ed3fa66a1c9 registry.fit2cloud.com/jumpserver/core-ee:v3.10.6 "./entrypoint.sh sta…" About a minute ago Up About a minute (unhealthy) 8080/tcp jms_celery

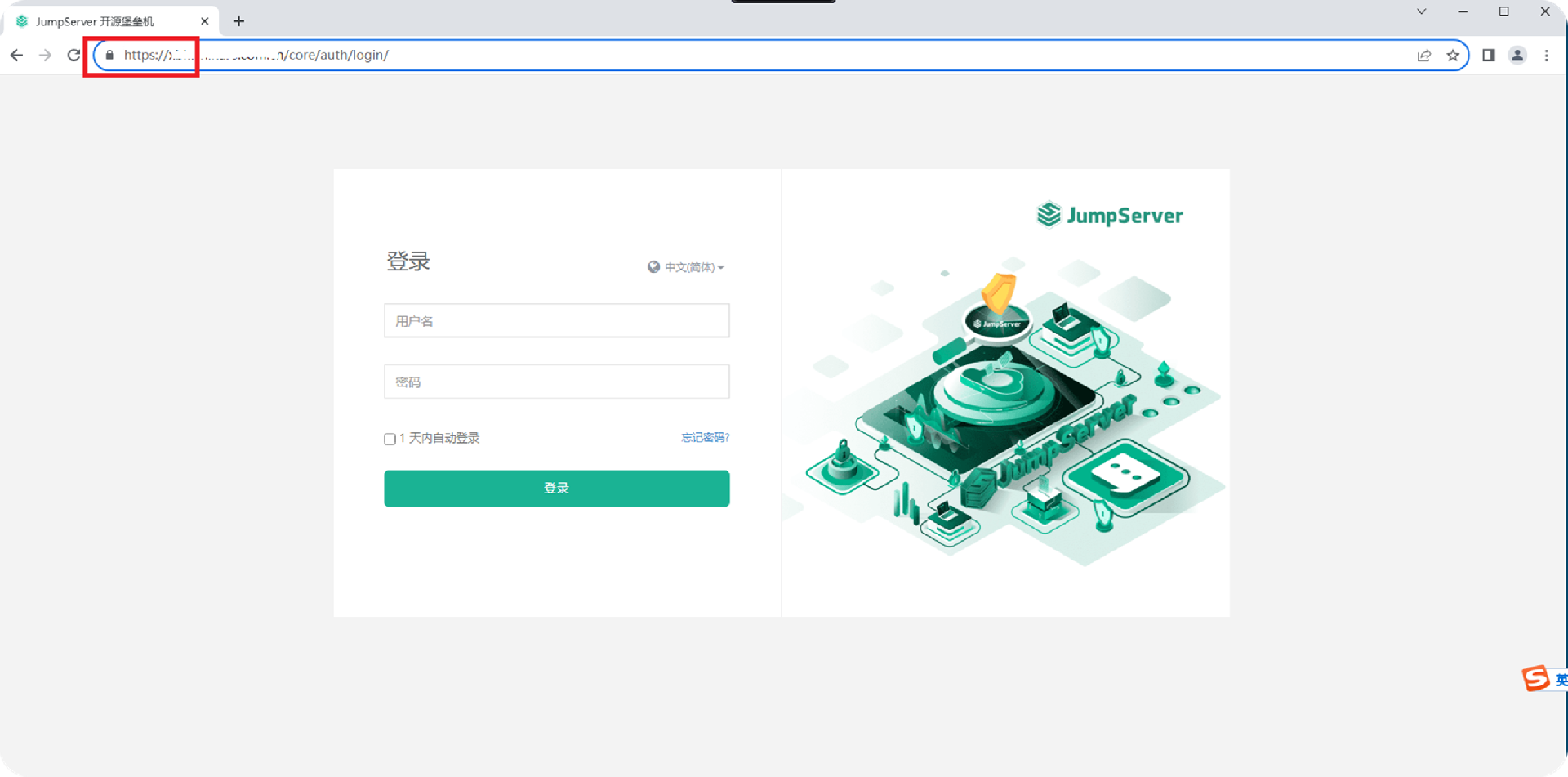

登录 JumpServer，查看 HTTPS 是否正常开启，证书是否生效（登录页面无安全风险提示）。
替换方式二
将上传的文件放置到 /opt/jumpserver/config/nginx/cert。
根据实际使用的证书名称修改 JumpServer 的配置文件中的 HTTPS 配置的相关部分。
################################# HTTPS 配置 ################################## 参考 https://docs.jumpserver.org/zh/v3/installation/proxy/ 配置#HTTPS_PORT=443SERVER_NAME=your_domain_nameSSL_CERTIFICATE=server.crtSSL_CERTIFICATE_KEY=server.key#
然后重新启动 JumpServer 服务，待重启结束，各个模块状态正常后，访问验证。
