Prometheus监控物理服务器

一、Prometheus介绍

Prometheus(普罗米修斯)是一套开源的监控&报警&时间序列数据库的组合, 由go语言开发。适合监控容器平台, 因为kubernetes(俗称k8s)的流行带动了prometheus的发展。
PS：使用prometheus监控仍然监控物理服务器。

官方网站: https://prometheus.io/

二、Prometheus监控

实验环境准备

1、所有服务器静态ip(要求能上外网)，所有服务器各配置主机名并绑定

//各自配置好主机名
[root@stw ~]# hostnamectl set-hostname grafana.example.com
[root@stw ~]# bash

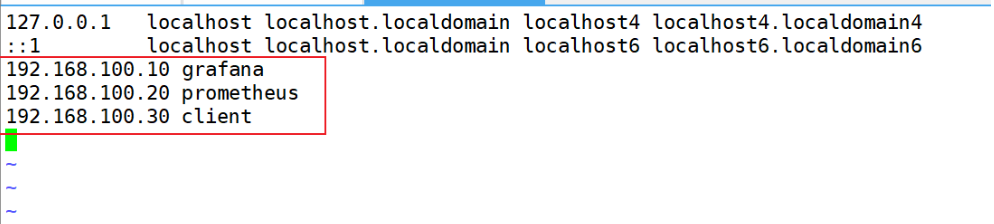

//三台都互相绑定IP与主机名
[root@grafana ~]# vim /etc/hosts

2、所有服务器时间同步(时间同步一定要做)

[root@client ~]# systemctl restart chronyd
[root@client ~]# systemctl enable chronyd
[root@client ~]# systemctl status firewalld.service

3、所有服务器关闭防火墙,selinux

[root@client ~]# systemctl status firewalld.service
● firewalld.service - firewalld - dynamic firewall daemon
   Loaded: loaded (/usr/lib/systemd/system/firewalld.service; disabled; vendor preset: enabled)
   Active: inactive (dead)
     Docs: man:firewalld(1)
[root@client ~]# getenforce
Disabled

安装Prometheus

下载地址: https://prometheus.io/download/ (请使用共享的软件版本，以免出现不兼容问题)

1、二进制版解压就能用，不需要编译

[root@prometheus ~]# rz -E
rz waiting to receive.
[root@prometheus ~]# ls
anaconda-ks.cfg  Downloads             Pictures                              Templates
Desktop          initial-setup-ks.cfg  prometheus-2.54.0.linux-amd64.tar.gz  Videos
Documents        Music                 Public
[root@prometheus ~]# tar -zxvf prometheus-2.54.0.linux-amd64.tar.gz -C /usr/local/
[root@prometheus ~]# cd /usr/local
[root@prometheus local]# ls
bin  games    lib    libexec                        sbin   src
etc  include  lib64  prometheus-2.54.0.linux-amd64  share
[root@prometheus ~]# mv /usr/local/prometheus-2.54.0.linux-amd64/ /usr/local/prometheus
[root@prometheus ~]# cd /usr/local/
[root@prometheus local]# ls
bin  etc  games  include  lib  lib64  libexec  prometheus  sbin  share  src
[root@prometheus local]# cd prometheus/
[root@prometheus prometheus]# ls
console_libraries  consoles  LICENSE  NOTICE  prometheus  prometheus.yml  promtool

配置文件说明

[root@prometheus ~]# cd /usr/local/prometheus/
[root@prometheus prometheus]# ls
console_libraries  consoles  LICENSE  NOTICE  prometheus  prometheus.yml  promtool
[root@prometheus prometheus]# vim prometheus.yml
2:global:                                                           //全局配置段
3:  scrape_interval:     15s                                    //每15s抓取(采集)数据一次
4:  evaluation_interval: 15s                                 //每15秒计算一次规则
8:alerting:                                                        //Alertmanager报警相关
9:  alertmanagers:
10:  - static_configs:
11:
